Mock source

Testing an ingest pipeline usually means waiting for a device to transmit. The mock source removes that wait: it posts the exact callback bodies a real Sigfox backend would send, at your source's ingest endpoint, on demand.

It runs on localhost:3003 with a console at /ui.

Which source it needs in the Center

The mock is not a technology of its own: it impersonates a real backend — Sigfox Backend, The Things Stack or ChirpStack, chosen first in the console — and posts the exact bodies that backend would. So the source it feeds in the Center is an ordinary source of that technology: pick Sigfox when the mock runs in Sigfox mode, The Things Stack when it runs in TTN mode. The Center's real adapter parses the callbacks, which is the whole point; a "mock" technology would only bypass it. If you want to exercise both, create one source per technology and point the mock at whichever you are testing.

Start it

cd source-test
npm install
cp .env.example .env
npm run secret        # prints the source's webhook secret
# paste that into .env as WEBHOOK_SECRET
npm run start:dev

npm run secret decrypts the shared secret of the source integration you are testing, straight from your local database. Nothing leaves the machine.

Without WEBHOOK_SECRET the callbacks go out unauthenticated and the Center answers 401 — which is a useful test in itself, just not the one you usually want first.

Check what it is pointed at before firing anything:

curl -s localhost:3003/health

That returns the ingest URL it will post to, the device it will pretend to be, whether a secret is configured, and the callbacks it knows about.

Send one message

curl -X POST localhost:3003/emit/bidir

That posts a complete, well-formed DATA_BIDIR callback to your source's ingest endpoint. Watch Analytics in the Center — Received goes up — or watch the mock sink receive the delivery.

The route accepts either the short name or the Sigfox messageType:

So POST /emit/DATA_BIDIR and POST /emit/bidir do the same thing.

What actually gets posted

A bidir call sends this body — the same fields, in the same order, that the Center registers on the real Sigfox device type:

{
  "messageType": "DATA_BIDIR",
  "device": "1A2B3C",
  "deviceTypeId": "6a78e0b0ec27932950396541",
  "time": 1755265665,
  "seqNumber": 18,
  "data": "00018d460000300040e12402",
  "ack": true,
  "rssi": -103.41,
  "station": "0A1B"
}

ack: true is the important one: it means the device is asking for a downlink and is holding its receive window open. See Respond with a downlink.

Bend any field

Every top-level key that is not a control key is merged into the callback body. So changing the payload frame is just:

curl -X POST localhost:3003/emit/bidir \
  -H 'content-type: application/json' \
  -d '{"data": "00018d460000300040e12402"}'

The control keys — the ones that steer the mock rather than the body — are:

Three tests worth running

Does de-duplication work?

The Center delivers at least once, and your sink is supposed to recognise a repeat. Force one by reusing a sequence number:

curl -X POST localhost:3003/emit/bidir -H 'content-type: application/json' -d '{"seqNumber": 42}'
curl -X POST localhost:3003/emit/bidir -H 'content-type: application/json' -d '{"seqNumber": 42}'

Both arrive with the same idempotencyKey. The mock sink flags the second as DUP.

Is the endpoint actually protected?

curl -X POST localhost:3003/emit/bidir -H 'content-type: application/json' -d '{"omitSecret": true}'

The Center should answer 401. If it answers 2xx, your source is accepting unauthenticated payloads — see Connect a source.

What does load look like?

curl -X POST localhost:3003/emit/bidir -H 'content-type: application/json' -d '{"count": 50}'

Fifty messages, sent sequentially. Watch Analytics and the sink's delivery list.

A whole transmission, timed like the real thing

One device transmission produces several callbacks, and they do not arrive together. POST /emit reproduces that:

curl -X POST localhost:3003/emit \
  -H 'content-type: application/json' \
  -d '{"types": ["DATA_BIDIR", "SERVICE_ACKNOWLEDGE", "SERVICE_DATA_ADVANCED"]}'

Each is scheduled at the delay it really has:

To replay exactly what your live source has enabled — rather than picking types by hand:

curl -X POST localhost:3003/emit-enabled

And to repeat the last thing you sent:

curl -X POST localhost:3003/replay-last

The console

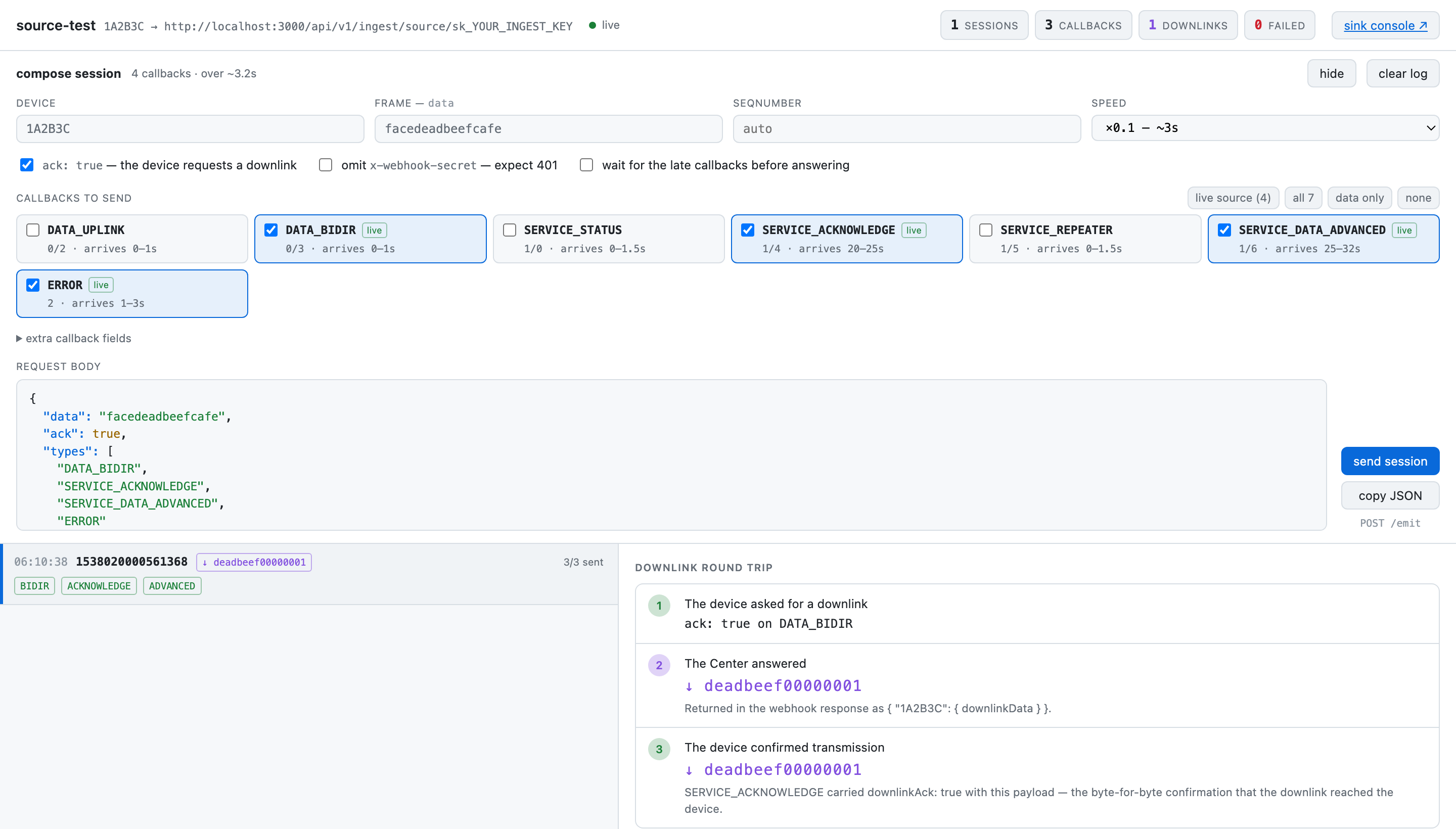

localhost:3003/ui is the device's side of the glass. The mock sink shows what the application received; this shows what the device experienced — including the one thing a sink can never tell you: whether the downlink it offered actually came back down.

Every session gets a round-trip panel: the device asked for a downlink, the Center answered with one, and here is whether it arrived.

Compose a session at the top — device, frame, which callbacks, how fast — then send session. The panel on the right is the part no sink can show you: line 3 is SERVICE_ACKNOWLEDGE carrying downlinkAck: true, the byte-for-byte confirmation that the downlink reached the device.

The raw log is also on HTTP:

curl -s localhost:3003/log          # recent emissions
curl -s localhost:3003/runs         # sessions
curl -X DELETE localhost:3003/log   # clear it

Testing provisioning without touching Sigfox

The mock also answers the Sigfox v2 REST API the Center calls when provisioning. Point the Center at it:

SIGFOX_API_BASE=http://localhost:3003/v2
SIGFOX_LIVE=true
SIGFOX_READONLY=true

Now apply really runs — creating device types, registering callbacks, creating devices — against an in-memory fake instead of a real account. It implements device types, callbacks, devices, groups, contracts and api-users; anything else 404s rather than pretending to succeed.

POST /v2/_reset clears devices and callbacks so you can run the same provisioning flow again from clean.

In the cloud

The same rig runs on Dokploy at source.iot.una.center, posting to the production Center over HTTPS exactly as a real backend would. Everything on this page applies there with the host swapped — the console is at /ui. The ingest URL and webhook secret can be pasted into the console's connection panel rather than set in the environment; the console keeps them across restarts. It is a test tool with a public address: stop the app when nobody is testing.
